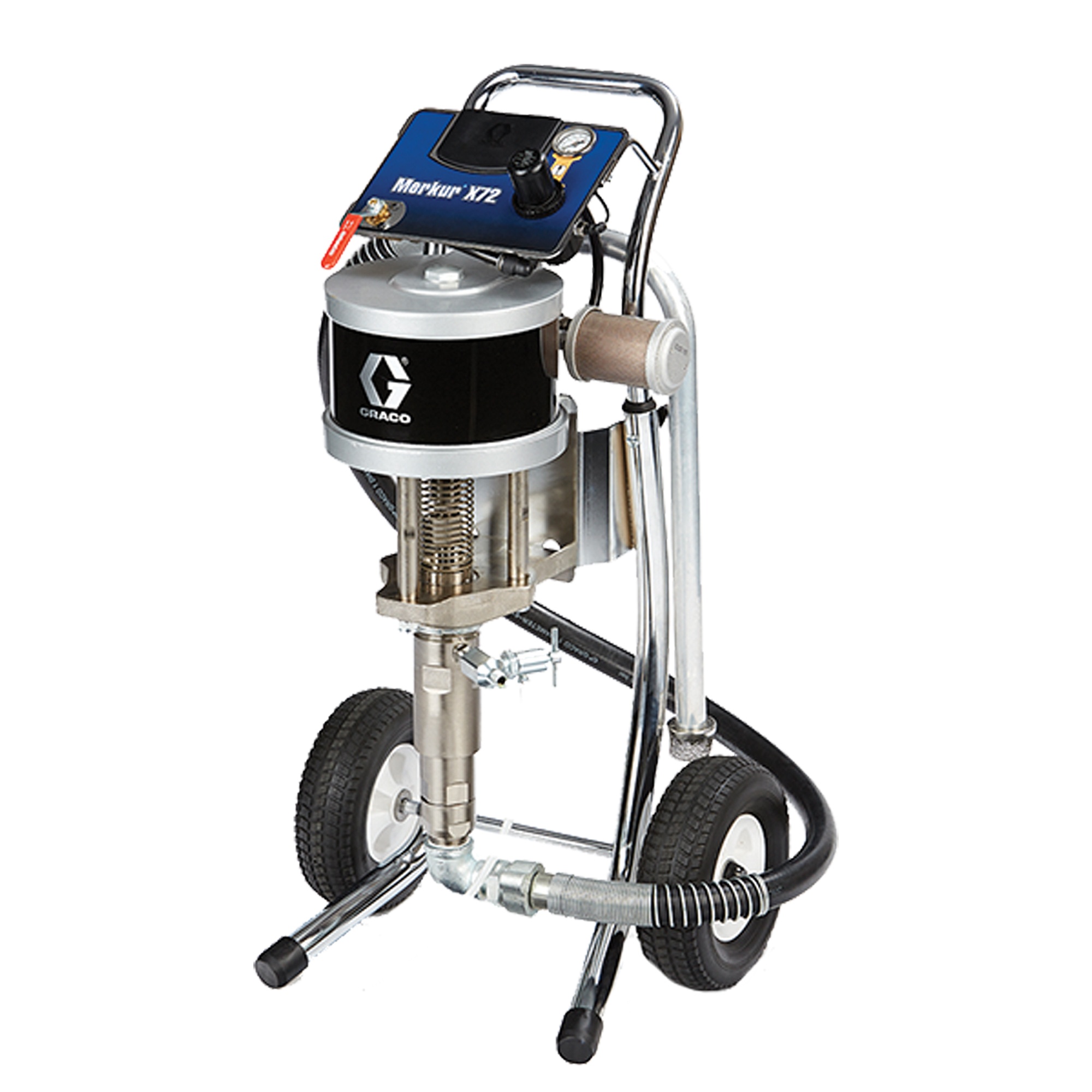

Graco Merkur 48:1 and 72:1 Airless Spray Package
$9,556.96 – $10,703.28
The Graco Merkur X48 and X72 single component airless sprayers offer the ultimate combination of power and portability, giving you the ability to spray tough materials in the most challenging situations. Weighing just 45 kg the Merkur Sprayer can easily be Ordering Information positioned in tight areas, without sacrificing spray quality or power.
Graco Merkur high pressure PDF Brochure for 48:1 & 72:1 Merkur
Technical Specifications:
- Maximum fluid working pressure: 48:1 (4800 psi ) 72:1 (7200 psi )
- Recommended tip size: Up to 48:1 0.025 72:1 0.021
- Fluid flow at 60 cycles/min: 48:1 4.5 lpm 72:1 3.0 lpm
- Maximum air inlet pressure:100 psi
- Fluid inlet size: 1-1/4 in npt (m)
- Fluid outlet size: 3/8 in npt (f)
- Pump weight: 45 kg
- Spray Gun: 48:1 XTR504 (0.019 tip) 72:1 XTR704 (0.019 tip)
- Manual 332245 332245
Comes with:
- XTR gun with 519 tip
- 3/8 in x 7.6 m (25 ft) hose
- 1.8m (6 ft) whip
Accessories :
- 16U924 Repair kit, X72 fluid section
- 16U925 Repair kit, X48 fluid section
- 16V583 Fluid filter kit, (7250 psi) for X48 or X72. Includes 60 mesh filter element
- 224459 60 mesh fluid filter element, 2-pack
- 224468 100 mesh fluid filter element, 2-pack
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Options | 16U920 Merkur X48 complete package, 16U918 Merkur X72 complete package |
