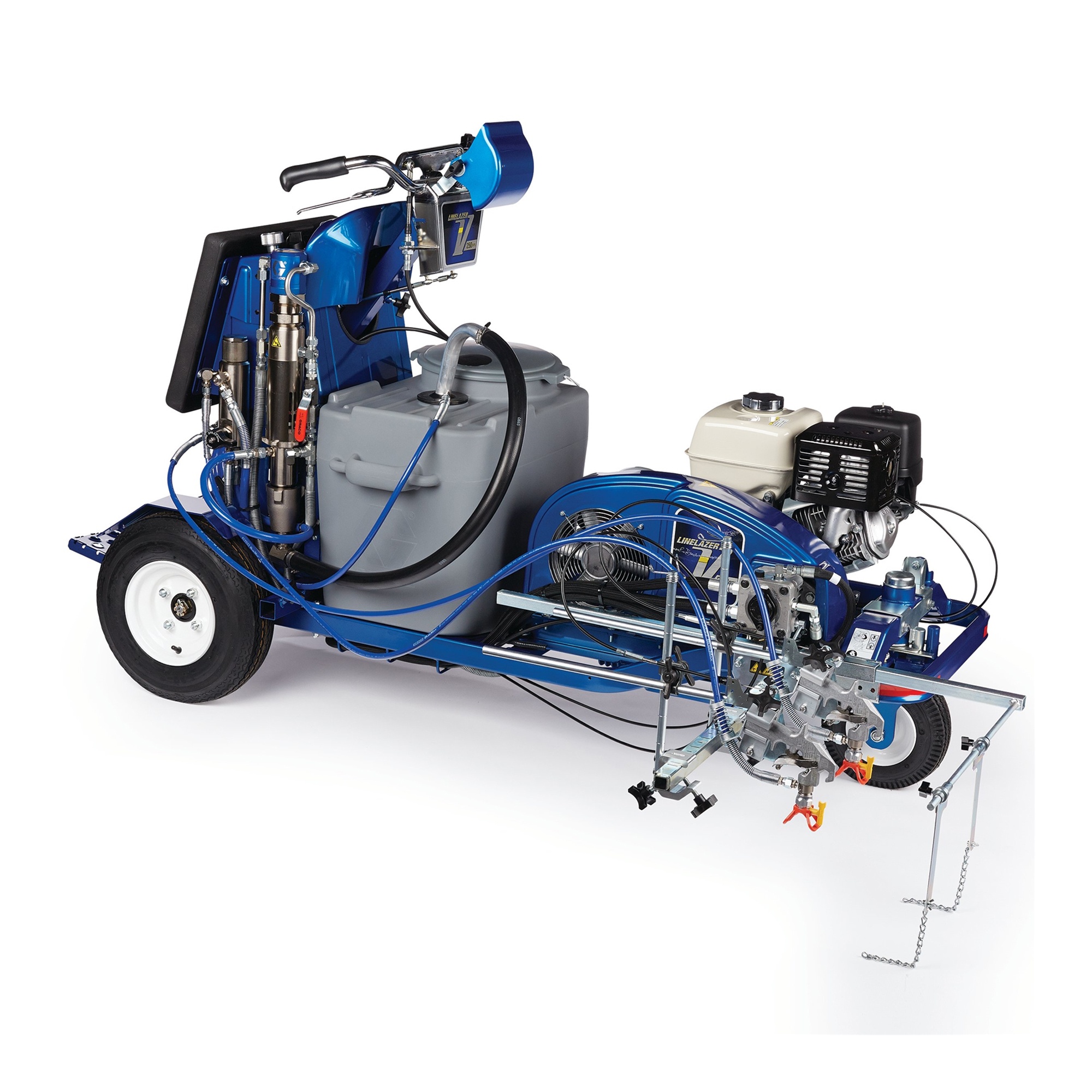

Graco LineLazer V 250sps HP Automatic 2 gun – 17H467

$50,618.40

With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS is a self-propelled system that is ideal for large, heavy-duty line striping jobs, including airports and streets.

Specifications:

  • Max Tip: 0.055”  (1 gun)  0.039” (2 gun)
  • Max PSI: 3300
  • Max flow rate: 9.5 lpm
  • Motor: 13HP Petrol
  • Weight: 302 KG
  • Endurance Piston Pump

Includes:

  • Flex Plus Gun
  • 6.7 Mtr x 3/8” Hose x 2
  • RAC 5 Guard LL5 319 / LL5321 Tip
  • 50 Mesh Filter 24V455

Spare Parts:

  • Parts Manual: 3A3394
  • Inlet Strainer: 187147
  • Manifold Filter: 24A465
  • Prime Valve: 245103
  • Fluid Pump: 277068
  • Pump Manual: 309277
  • Pump Repair Kit: 246341
  • QuikPak: N/A
  • Rod: 249000
  • Cylinder: 245413
  • Sleeve: 248979
  • Intake Seat Kit: 240918
  • Piston Valve: 249177
  • Spraygun: 248157
  • Gun Manual: 311254
  • Gun Repair Kit: 235474
