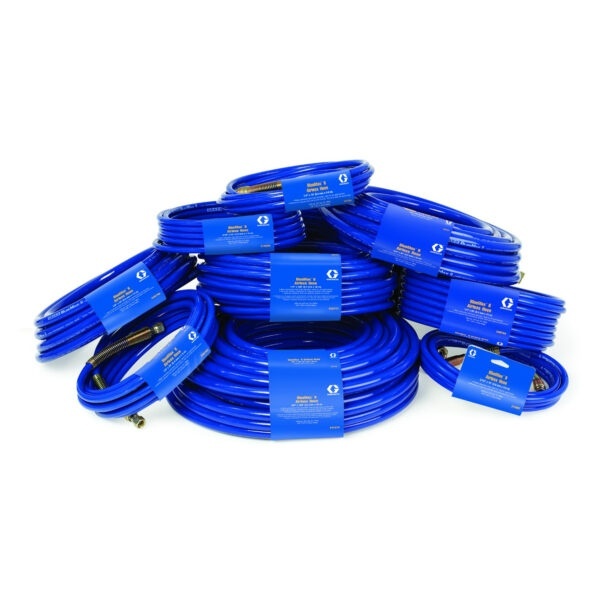

Graco Paint Sprayer Hoses

Graco Airless Paint Sprayer Hoses maximise performance, BlueMax II hoses are high performance airless hoses. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer.

• Lighter Weight
  • Over 10% lighter weight and increased hose flexibility improves usability while spraying under pressure
• Highest Safety Standards
  • Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs
• Minimal Hose Coil Memory
  • Superior flexibility and reduced coil memory provides ease of use during coiling and uncoiling
• Corrosion Resistant
  • Yellow zinc-plated spring guards are more corrosion-resistant

Choosing the correct hose diameter to meet your length requirements is critical to maximize spraying pressure. The larger the hose diameter, the greater the pressure at the gun. As hose diameter is reduced or the hose length increases, there will be less pressure at the gun — possibly affecting spray patterns.
For maximum pressure when coupling hoses together; connect the larger diameter hose to the sprayer and smaller diameter hose to the gun inlet. Use a whip hose to allow flexibility when spraying.

Add a Whip Hose to provide more flexibility and increased operator control at the gun. These hoses are especially beneficial on large jobs when spraying for long periods of time to help reduce fatigue and provide a quality finish over the course of the entire job.

Specifications

• 3/16 in diameter (4.8 mm) Airless Hose is ideal for interior pressure rolling or low pressure applications
• 1/4 in diameter (6.4 mm) Airless Hose is the most commonly sold hose diameter and is suitable for all applications.
• 3/8 in diameter (9.5 mm) Airless Hose delivers the best performance at the gun with the least amount of pressure drop with heavier material and longer hose lengths.
• 3300 PSI

Tip

Add extra Graco Airless Paint Sprayer Hoses to your sprayer for bigger projects for improved mobility and better reach.
